TDF and Portability

January 1998

TDF is an abstraction of high-level languages - it contains such things as exps (abstractions of expressions and statements), shapes (abstractions of types) and tags (abstractions of variable identifiers). In general form it is an abstract syntax tree which is flattened and encoded as a series of bits, called a capsule. This fairly high level of definition (for a compiler intermediate language) means that TDF is architecture neutral in the sense that it makes no assumptions about the underlying processor architecture.

The translation of a capsule to and from the corresponding syntax tree is totally unambiguous, also TDF has a "universal" semantic interpretation as defined in the TDF specification.

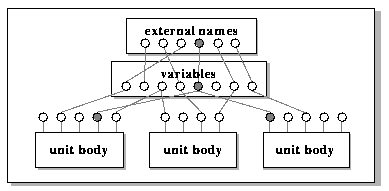

FIGURE 2. TDF Capsule Structure

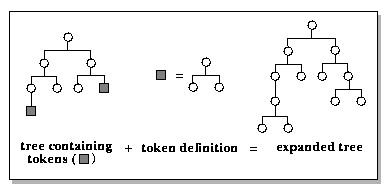

FIGURE 3. TDF Tokens

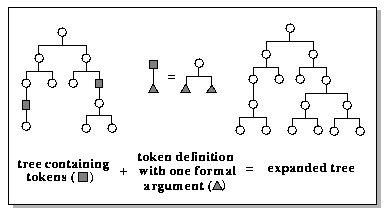

FIGURE 4. TDF Tokens (with Arguments)

Again we start with the simplest case, where the program contains no target dependent code. The strategy is illustrated in Fig. 5, which should be compared with the traditional compilation strategy shown in Fig. 1. The general layout of the diagrams is the same. The left halves of the diagrams refers to the program itself, and the right halves to the corresponding API. The top halves refer to machine independent material, and the bottom halves to what happens on each target machine. Thus, as before, the portable program appears in the top left of the diagram, and the corresponding API in the top right.

The first thing to note is that, whereas previously all the compilation took place on the target machines, here the compilation has been split into a target independent (C -> TDF) part, called production, and a target dependent (TDF -> target) part, called installation . One of the synonyms for TDF is ANDF, Architecture Neutral Distribution Format, and we require that the production is precisely that - architecture neutral - so that precisely the same TDF is installed on all the target machines.

3.2.1. API Description (Top Right)

	#pragma token TYPE FILE # ansi.stdio.FILE
	#pragma token EXP rvalue : FILE * : stdout # ansi.stdio.stdout
	#pragma token FUNC int ( const char *, FILE * ) : fputs # ansi.stdio.fputs

	int fputs ( const char *, FILE * ) ;

The names ansi.stdio.FILE etc. give the external names for these tokens, those which will be visible at the outermost layer of the capsule; they are intended to be unique (this is discussed below). It is worth making the distinction between the internal names and these external token names. The former are the names used to represent the objects within C, and the latter the names used within TDF to represent the tokens corresponding to these objects.

Note also that because the information in the target independent headers describes abstractly the contents of the API and not some particular implementation of it, the producer is in effect checking the program against the API itself.

The syntactic details of the implementation are to be found in the system headers. The process of defining the tokens describing the API (called TDF library building) consists of comparing the implementation of the API as given in the system headers with the abstract description of the tokens comprising the API given in the target independent headers. The token definitions thus produced are stored as TDF libraries, which are just archives of TDF capsules.

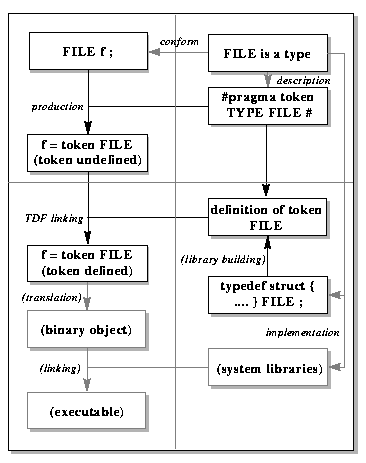

FIGURE 6. Example Compilation

	FILE f ;

	int a = 1 + 1 ;

As another example, in the structure:

	struct tag {
	    int a ;
	    double b ;
	} ;

Furthermore, because all the producer's operations are performed at this very abstract level, it is a simple matter to put in extra portability checks. For example, it would be a relatively simple task to put most of the functionality of lint (excluding intermodular checking) or gcc's -Wall option into the producer, and moreover have these checks applied to an abstract machine rather than a particular target machine. Indeed a number of these checks have already been implemented.

These extra checks are switched on and off by using #pragma statements. (For more details on the #pragma syntax and which portability checks are currently supported by the producer see [3].) For example, ANSI C states that any undeclared function is assumed to return int, whereas for strict portability checking it is more useful to have undeclared functions marked as an error (indeed for strict API checking this is essential). This is done by inserting the line:

	#pragma no implicit definitions

Because these checks can be turned off as well as on it is possible to relax as well as strengthen portability checking. Thus if a program is only intended to work on 32-bit machines, it is possible to switch off certain portability checks. The whole ethos underlying the producer is that these portability assumptions should be made explicit, so that the appropriate level of checking can be done.

As has been previously mentioned, the use of a single front-end to any compiler not only virtually eliminates the problems of differing code interpretation and compiler quirks, but also reduces the exposure to compiler bugs. Of course, this also applies to the TDF compiler, which has a single front-end (the producer) and multiple back-ends (the installers). As regards the syntax and semantics of the C language, the producer is by default a strictly ANSI C compliant compiler. (Addition to the October 1993 revision : Alas, this is no longer true; however strict ANSI can be specified by means of a simple command line option (see [1]). The decision whether to make the default strict and allow people to relax it, or to make the default lenient and allow people to strengthen it, is essentially a political one. It does not really matter in technical terms provided the user is made aware of exactly what each compilation mode means in terms of syntax, semantics and portability checking.) However it is possible to change its behaviour (again by means of #pragma statements) to implement many of the features found in "traditional" or "K&R" C. Hence it is possible to precisely determine how the producer will interpret the C code it is given by explicitly describing the C dialect it is written in in terms of these #pragma statements.

Once the initial difficulty of overcoming the syntactic and semantic differences between the various C dialects is overcome, the C -> TDF mapping is quite straightforward. In a hierarchy from high level to low level languages C and TDF are not that dissimilar - both come towards the bottom of what may legitimately be regarded as high level languages. Thus the constructs in C map easily onto the constructs of TDF (there are a few exceptions, for example coercing integers to pointers, which are discussed in [3]). Eccentricities of the C language specification such as doing all integer arithmetic in the promoted integer type are translated explicitly into TDF. So to add two char's, they are promoted to int's, added together as int's, and the result is converted back to a char. These rules are not built directly into TDF because of the desire to support languages other than C (and even other C dialects).

A number of issues arise when tokens are introduced. Consider for example the type size_t from the ANSI standard. This is a target dependent integer type, so bearing in mind what was said above it is natural for the producer to use a tokenised variety (the TDF representation of integer types) to stand for size_t. This is done by a #pragma token statement of the form:

	#pragma token VARIETY size_t # ansi.stddef.size_t

As another example, suppose that we have a target dependent C type, type say, and we define a procedure which takes an argument of type type. In both the procedure body and at any call of the procedure the TDF we need to produce to describe how C passes this argument will depend on type. This is because C does not treat all procedure argument types uniformly. Most types are passed by value, but array types are passed by address. But whether or not type is an array type is target dependent, so we need to use tokens to abstract out the argument passing mechanism. For example, we could implement the mechanism using four tokens : one for the type type (which will be a tokenised shape), one for the type an argument of type type is passed as, arg_type say, (which will be another tokenised shape), and two for converting values of type type to and from the corresponding values of type arg_type (these will be tokens which take one exp argument and give an exp). For most types, arg_type will be the same as type and the conversion tokens will be identities, but for array types, arg_type will be a pointer to type and the conversion tokens will be "address of" and "contents of".

So there is not the simple one to one correspondence between #pragma token directives and TDF tokens one might expect. Each such directive maps onto a family of TDF tokens, and this mapping in a sense encapsulates the C language specification. Of course in the TDF library building process the definitions of all these tokens are deduced automatically from the local values.

It is the TDF to assembly code translator which is the main part of the installer. Although not strictly related to the question of portability, the nature of the translator is worth considering. Like the producer (and the assembler), it is a transformational, as opposed to a combinatorial, compilation phase. But whereas the transformation from C to TDF is "difficult" because of the syntax and semantics of C and the need to represent everything in an architecture neutral manner, the transformation from TDF to assembly code is much easier because of the unambiguous syntax and uniform semantics of TDF, and because now we know the details of the target machine, it is no longer necessary to work at such an abstract level.

The whole construction of the current generation of TDF translators is based on the concept of compilation as transformation. They represent the TDF they read in as a syntax tree, virtually identical to the syntax tree comprising the TDF. The translation process then consists of continually applying transformations to this tree - in effect TDF -> TDF transformations - gradually optimising it and changing it to a form where the translation into assembly source code is a simple transcription process (see [7]).

Even such operations as constant evaluation - replacing 1 + 1 by 2 in the example above - may be regarded as TDF -> TDF transformations. But so may more complex optimisations such as taking constants out of a loop, common sub-expression elimination, strength reduction and so on. Some of these transformations are universally applicable, others can only be applied on certain classes of machines. This transformational approach results in high quality code generation (see [5]) while minimising the risk of transformational errors. Moreover the sharing of so much code - up to 70% - between all the TDF translators, like the introduction of a common front-end, further reduces the exposure to compiler bugs.

Much of the machine ABI information is built into the translator in a very simple way. For example, to evaluate the offset of the field b in the structure struct tag above, the producer has already done all the hard work, providing a formula for the offset in terms of the sizes and alignments of the basic C types. The translator merely provides these values and the offset is automatically evaluated by the constant evaluation transformations. Other aspects of the ABI, for example the procedure argument and result passing conventions, require more detailed attention.

	void *malloc ( size_t ) ;

	void *malloc ( s )
	size_t s ;

As an example of a deliberate incompatibility, both XPG3 and SVID3 declare a structure struct msqid_ds in sys/msg.h which has fields msg_qnum and msg_qbytes. The difference is that whereas XPG3 declares these fields to have type unsigned short, SVID3 declares them to have type unsigned long. However for most purposes the precise types of these fields is not important, so the APIs can be unified by making the types of these fields target dependent. That is to say, tokenised integer types __msg_q_t and __msg_l_t are introduced. On XPG3-compliant machines these will both be defined to be unsigned short, and on SVID3-compliant machines they will both be unsigned long. So, although strict XPG3 and strict SVID3 are incompatible, the two extension APIs created by adding these types are compatible. In the rare case when the precise type of these fields is important, the strict APIs can be recovered by defining the field types to be unsigned short or unsigned long at produce-time rather than at install-time. (XPG4 uses a similar technique to resolve this incompatibility. But whereas the XPG4 types need to be defined explicitly, the tokenised types are defined implicitly according to whatever the field types are on a particular machine.)

This example shows how introducing extra abstractions can resolve potential conflicts between APIs. But it may also be used to resolve conflicts between the API specification and the API implementations. For example, POSIX specifies that the structure struct flock defined in fcntl.h shall have a field l_pid of type pid_t. However on at least two of the POSIX implementations examined at DRA, pid_t was implemented as an int, but the l_pid field of struct flock was implemented as a short (this showed up in the TDF library building process). The immediate reaction might be that these system have not implemented POSIX correctly, so they should be cast into the outer darkness. However for the vast majority of applications, even those which use the l_pid field, its precise type is not important. So the decision was taken to introduce a tokenised integer type, __flock_pid_t, to stand for the type of the l_pid field. So although the implementations do not conform to strict POSIX, they do to this slightly more relaxed extension. Of course, one could enforce strict POSIX by defining __flock_pid_t to be pid_t at produce-time, but the given implementations would not conform to this stricter API.

Both the previous two examples are really concerned with the question of determining the correct level of abstraction in API specification. Abstraction is inclusive and allows for API evolution, whereas specialisation is exclusive and may lead to dead-end APIs. The SVID3 method of allowing for longer messages than XPG3 - changing the msg_qnum and msg_qbytes fields of struct msqid_ds from unsigned short to unsigned long - is an over-specialisation which leads to an unnecessary conflict with XPG3. The XPG4 method of achieving exactly the same end - abstracting the types of these fields - is, by contrast, a smooth evolutionary path.

Similarly, values which are undefined are also reported. If these values can be deduced from other information, then it is a simple matter to tell the library builder to use these deduced values. For example, if EXIT_SUCCESS and EXIT_FAILURE are undefined, it is probably possible to deduce their values from experimentation or experience (or guesswork).

All of this has tended to paint the system vendors as the villains of the piece for not providing correct API implementations, but this is not entirely fair. The reason why API implementation errors may persist over many operating system releases is that system vendors have as many porting problems as anyone else - preparing a new operating system release is in effect a huge porting exercise - and are understandably reluctant to change anything which basically works. The use of TDF libraries could be a low-risk strategy for system vendors to allow users the benefits of API conformance without changing the underlying operating system.

Of course, if the system vendor's porting problems could be reduced, they would have more confidence to make their underlying systems more API conformant, and thereby help reduce the normal programmer's porting problems. So whereas using the TDF libraries might be a short-term workaround for API implementation problems, the rest of the TDF porting system might help towards a long-term solution.

	#pragma token EXP rvalue : char * : hello #
	#pragma interface hello

	+EXP char *hello ;

	#include <stdio.h>
	#include "tokens.h"

	int main ()
	{
	    printf ( "%s\n", hello ) ;
	    return ( 0 ) ;
	}

	produce : hello.j
		echo "PRODUCTION COMPLETE"

	hello.j : hello.c tokens.h
		echo "PRODUCTION : C->TDF"
		tcc -Fj hello.c

On each target machine we need to create a token library giving the local definitions of the objects in the API. We shall assume that the library corresponding to the ANSI C API has already been constructed, so that we only need to define the token representing hello. This is done by means of a short C program, tokens.c, which implements the tokens declared in tokens.h. This might take the form:

	#pragma implement interface "tokens.h"
	#define hello "bonjour"

The installation process may be specified by adding the following lines to the Makefile:

	install : hello
		echo "INSTALLATION COMPLETE"

	hello : hello.j tokens.tl
		echo "INSTALLATION : TDF->TARGET"
		tcc -o hello -J. -jtokens hello.j

	tokens.tl : tokens.j
		echo "LIBRARY BUILDING : LINKING LIBRARY"
		tcc -Ymakelib -o tokens.tl tokens.j

	tokens.j : tokens.c tokens.h
		echo "LIBRARY BUILDING : DEFINING TOKENS"
		tcc -Fj -not_ansi tokens.c

The final step is installation. The target independent TDF, hello.j, is linked with the TDF libraries tokens.tl and ansi.tl (which is built into tcc as default) to form a target dependent TDF capsule with all the necessary token definitions, which is then translated to a binary object file and linked with the system libraries. All of this is under the control of tcc.

Note the four stages of the compilation : API specification, production, API implementation and installation, corresponding to the four regions of the compilation diagram (Fig. 5).

These conditional compilation constructs are used by the C -> TDF producer to translate certain statements containing:

	#if condition

Not all such #if statements can be translated into TDF X_cond constructs. The two branches of the #if statement are translated into the two X arguments of the X_cond construct; that is, into sub-trees of the TDF syntax tree. This can only be done if each of the two branches is syntactically complete.
